The Panhellenic Aqueous
Studio 2A formally named “In the Round” instructed by Marc Erikson was an in depth analysis of understanding orthographic projections derived using the Pantheon as a precedent. We then used this data to create a new form that became an aquatic center in Los Angeles.
Case Study: The Pantheon
The main focus of this case study is to identify the moments of symmetry in our precedents. The Pantheon was a very unique case as it contained a spherical symmetry, where the structure doesn't only create one line of vertical symmetry, the interior main space is the perfect circumference to hold a dome. From this we were to generate diagrams with the form of the precedent.

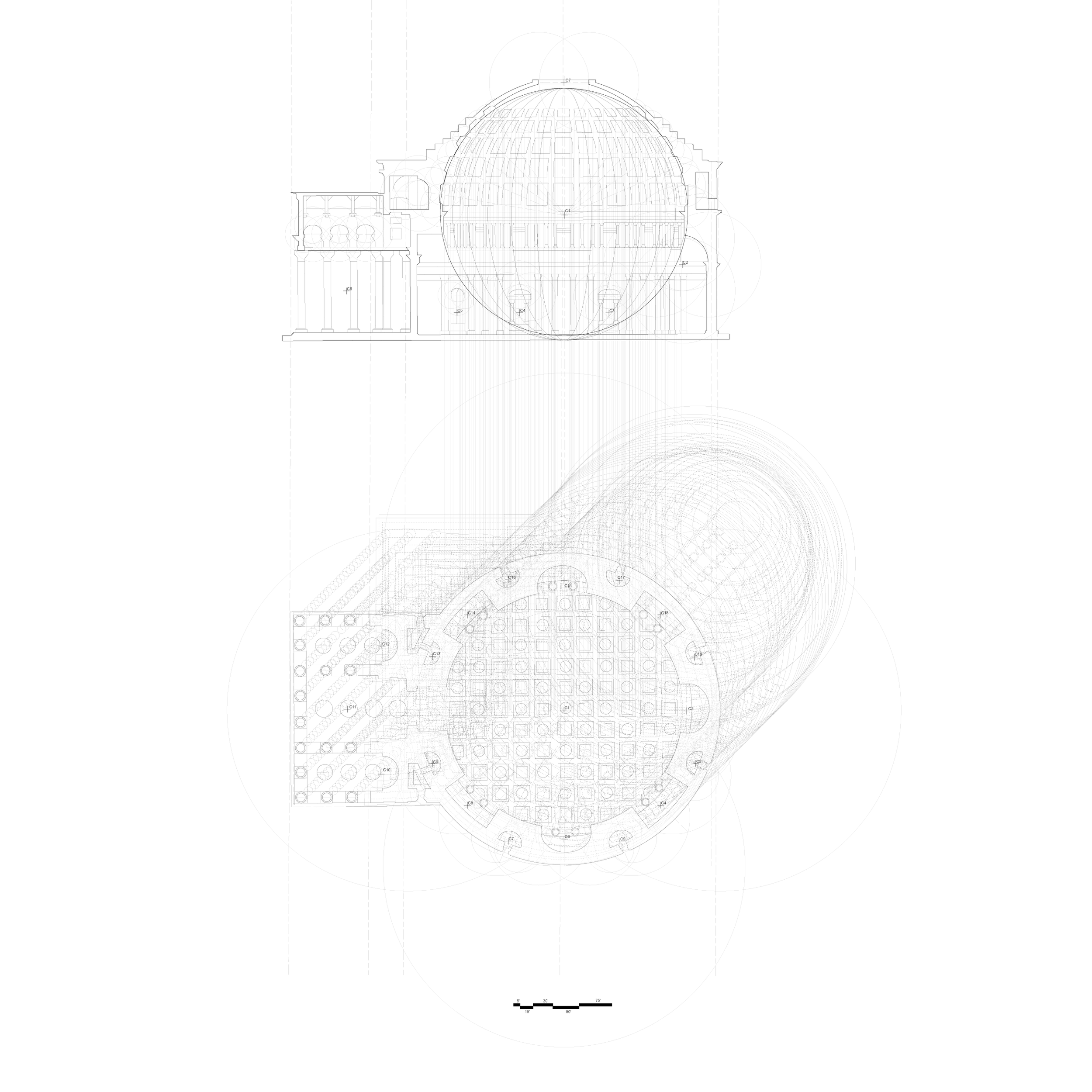

Orthographic Projection of the Patheon
Diagrams
Plan and Section Projected
Section of Hellenic Aqueous
Plan of Hellenic Aqueous
1st Floor Plan
2nd Floor Plan
3rd Floor Plan
4th Floor Plan
